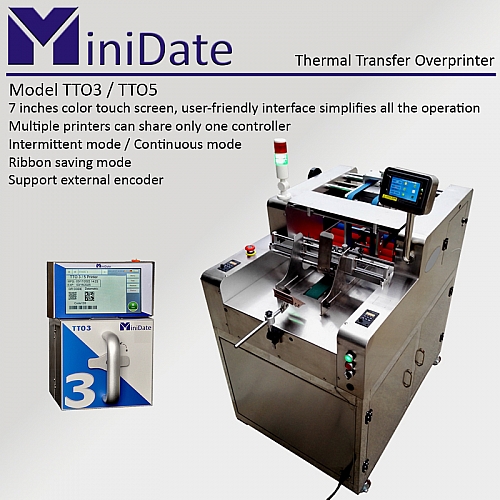

MiniDate & Feeder Specification :

- Product name : MiniDate Thermal Transfer Overprinter Model TTO3.
- MiniDate Controller : 7 inch color touch screen.
- MiniDate Print Head : 32mm. 300 DPI.

- MiniDate TTO3 Print Area :
* Intermittent : 32mm*75mm.
* Continuous：32mm*150mm.

MiniDate TTO3 Print Speed :
* Intermittent：2m/min-30m/min.
* Continuous：0.5m/min-42m/min.

Ribbon Width : 33mm ink outside.
Ribbon Length : 500m.



MiniDate Model TTO5 :

- Product name : MiniDate Thermal Transfer Overprinter Model TTO5.
- MiniDate Controller : 7 inch color touch screen.
- MiniDate Print Head : 53mm. 300 DPI.

- MiniDate TTO5 Print Area :
* Intermittent : 53mm*90mm.
* Continuous：53mm*150mm.

MiniDate TTO5 Print Speed :
* Intermittent：2m/min-30m/min.
* Continuous：0.5m/min-42m/min.

Ribbon Width : 35mm ink outside.
Ribbon Length : 600m.



Capable Content : Date & Time, Variable Info, Image, Table Info, Barcode, QR Code, Serial Info, etc.
Communication : RS232,Ethernet, Window supported data exchange protocol.
Interface Language : English, Spanish, Portuguese, French, Arabic, German, Russian, Simplified /Traditional Chinese, etc.
Saving/Assisting Mode : Ribbon Saving Mode, Radial Print Mode, Equal Spaced Mode, etc (Multifunctional available).
Dimension (Print Unit) : 190mm*180mm*170mm.
Weight (Print Unit) : 7.5 KG.
Dimension (Controller) : 220mm*120mm*30mm.
Weight (Controller) : 0.75 KG.
Power Supply : AC100-240V,50/60Hz.
Power : 200W.
Operation Environment : Temperature:0-40℃ Humidity:10-90%（Non-condensing).
Air Pressure : 0.6Mpa(Max.)/6bar, Dry, No pollution.

Feeder Dimensions : 1000*700*760mm L*W*H.
Feeder Net weight : 120KG.
Feeder Power supply : Single-phase 200-220VAC 50/60HZ(Other optional).
Feeder Power : 500W.
Feeder Speed : 0-50m/min.
Feeder Control mode : PLC+7" touch screen controller, double frequency conversion speed control.
Feeder Adapt to product types : Plastic bags/films, labels, varnishes or coated paper products.
Feeder Adapt to product specifications : Length:60-350mm width: 80-400mm thickness:0.1-2mm.
Feeder Effective printing width adjustment range : 350mm (handle adjustment).
