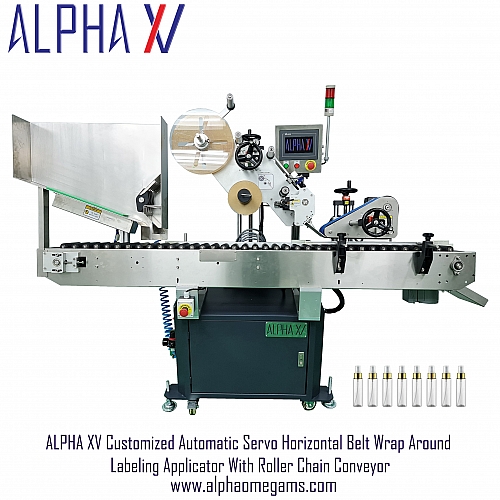

Product : ALPHA XV Customized Automatic Servo Horizontal Belt Wrap Around Labeling Applicator With Roller Chain
Labeling Application on : Round Bottle.
Technical parameter:
- Servo Motor.
- Dispensing speed : 20m/min.
- Horizontal Belt Wrapper approx. 115 bottles/min for 55ml - 150ml.
- Belt Wrap Around Labelling approx. 70- 80 pcs/min (depend on label and product size)
- Label Size :
Height Min 20mm - Max 120mm /
Length Min 20mm - Max 300mm (adjustable system setting)
- Dimension Approx. : 2200(L) x 1400(W)X 1300(H) MM
- Machine Weight : Approx. 260kg
Parts Configuration:
- OMRON PLC Control System, High stable operation and extremely low failure rate.
- 7'' Delta HMI touch screen, rich with help function and fault display function.
- Micro Detectors check label gap sensor, automatic check label station, stable and convenient don't have much higher requirement for the worker skill.
- Riko fiber optic sensor with Hokuyo Digital Amplifier for product detection .
- 30 Recipees for easy label setting
Alarm:
- Label low/finish alarm buzzer.
- Label break.
- Label gap sensor fault.
- Equipped with Emergency button.
